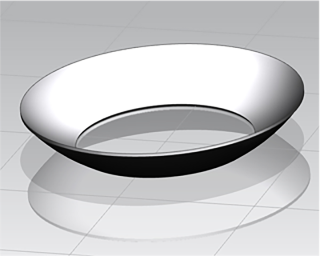

?Spherical gasket for half shaft gear
Pinion washer
Shim
Spherical gasket for half shaft gear
Product details
Metal clad gasket is a composite gasket composed of non-metallic materials as the core material, and 0.25-0.5mm metal sheet is coated externally with a specific cold working process. According to the gasket section, it can be generally divided into two types: plane type coating and corrugated type coating. It is a traditional sealing gasket. The metal sheet can be selected according to the elastoplasticity, heat resistance and corrosion resistance of the material, mainly including brass, aluminum, soft iron, stainless steel, monel alloy, titanium, etc, Non asbestos core materials generally include asbestos rubber board, non asbestos board, polytetrafluoroethylene board, graphite composite board, ceramic fiber board, etc. According to different materials, it can be combined into 304 stainless steel asbestos coated gasket, stainless steel graphite coated gasket and other forms.
Performance characteristics of metal clad gasket:
1. It has the same corrosion resistance and similar heat resistance as the coated metal,
2. The non-metallic flexible filler material enables the gasket to achieve a better sealing effect at a lower compression force.
3. It can be made into various forms of special-shaped gaskets, such as oval, square ribbed or more complex shapes to meet the sealing requirements of various heat exchanger tubes and non-circular pressure vessels.
4. Compared with the non-metallic soft gasket, the metal clad gasket is not easy to damage, stick to and corrode the flange sealing surface under the condition of frequent disassembly, and has higher strength.
Application scope of metal clad gasket: it is applicable to the sealing of pipeline flanges for pressure vessels (such as heat exchangers, reactors, etc.) with large diameter in medium high and low temperature and medium high pressure, and the flange sealing of pumps, pipe valves, pipelines and various equipment for various media.
Relevant standards:
HG/T 20630-2009 | Metal Clad Gaskets for Steel Pipe Flanges (American System Class Series)?
HG/T 20609-2009 | Metal clad gaskets for steel pipe flanges (European system PN series)?
JB/T4706-2000 | Metal clad gasket for pressure vessel flange
NB/T47026-2012 | Metal clad gasket for pressure vessel flange
JB/T8559-97 | Metal clad gasket
It can provide any standard and non-standard dimensions, including ASME, DIN, JIS, and other standards. Circular, square and other special-shaped gaskets can be provided, and ribbed metal clad gaskets can be provided as required.
